BT134-800E - 4Q Triac

WeEn

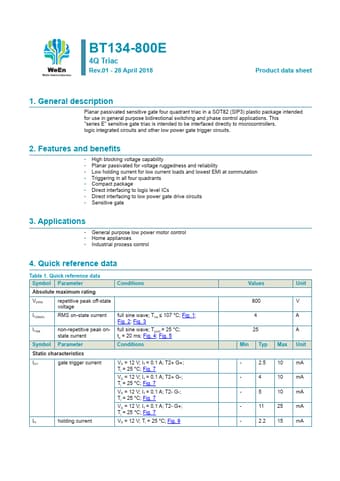

BT134-800E Datasheet Preview — Preview of BT134-800E PDF

Datasheet Details

Part number	BT134-800E
Manufacturer	WeEn
File Size	498.84 KB
Description	4Q Triac
Datasheet	BT134-800E-WeEn.pdf

BT134-800E Product details

Description

Planar passivated sensitive gate four quadrant triac in a SOT82 (SIP3) plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Low holding current for low current loads and lowest EMI at commutation.
Triggering in all four quadrants.
Compact package.
Direct interfacing to logic level ICs.
Direct interfacing to low power gate drive circuits.
Sensitive gate 3.
