BT136B-800E 4Q Triac

WeEn

BT136B-800E Description

BT136B-800E 4Q Triac 6 July 2018 Product data sheet 1.General .
Planar passivated sensitive gate four quadrant triac in a SOT404 (D2PAK) plastic package intended for use in general purpose bidirectional switching a.

BT136B-800E Features

* Direct triggering from low power drivers and logic ICs
* High blocking voltage capability
* Low holding current for low current loads and lowest EMI at commutation
* Planar passivated for voltage ruggedness and reliability
* Sensitive gate
* Surface

📥 Download Datasheet

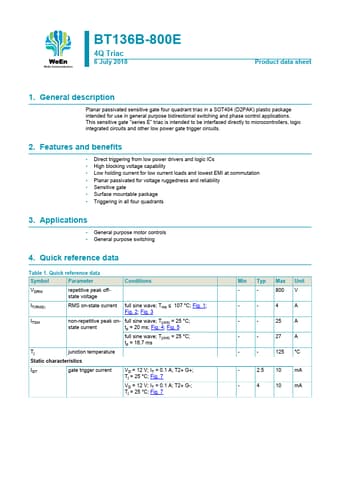

BT136B-800E Datasheet Preview — Preview of BT136B-800E PDF

Datasheet Details

Part number: BT136B-800E
Manufacturer: WeEn
File Size: 250.15 KB
Datasheet: BT136B-800E-WeEn.pdf
Description: 4Q Triac
