BT136S-800 - 4Q Triac

Datasheet Summary

Description

Planar passivated four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications.

2.

Features

  • High blocking voltage capability.
  • Less sensitive gate for improved noise immunity.
  • Planar passivated for voltage ruggedness and reliability.
  • Surface mountable package.
  • Triggering in all four quadrants 3.

📥 Download Datasheet

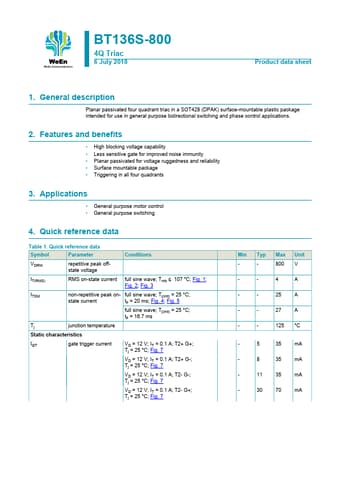

Datasheet preview – BT136S-800

Datasheet Details

Part number BT136S-800
Manufacturer WeEn
File Size 248.43 KB
Description 4Q Triac
Datasheet download datasheet BT136S-800 Datasheet
Additional preview pages of the BT136S-800 datasheet.

📁 Similar Datasheet

Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BT136S-800 4Q Triac 6 July 2018 Product data sheet 1. General description Planar passivated four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications. 2. Features and benefits • High blocking voltage capability • Less sensitive gate for improved noise immunity • Planar passivated for voltage ruggedness and reliability • Surface mountable package • Triggering in all four quadrants 3. Applications • General purpose motor control • General purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak offstate voltage IT(RMS) RMS on-state current full sine wave; Tmb ≤ 107 °C; Fig. 1; Fig. 2; Fig.
