BT137X-600D Datasheet - WeEn

4Q Triac

BT137X-600D Features

* Direct triggering from low power drivers and logic ICs

* High blocking voltage capability

* Isolated package

* Planar passivated for voltage ruggedness and reliability

* Triggering in all four quadrants

* Very sensitive gate 3. Applications

BT137X-600D General Description

Planar passivated very sensitive gate four quadrant triac in a SOT186A (TO-220F) "full pack" plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. This very sensitive gate "series D" triac.

BT137X-600D Datasheet (478.54 KB)

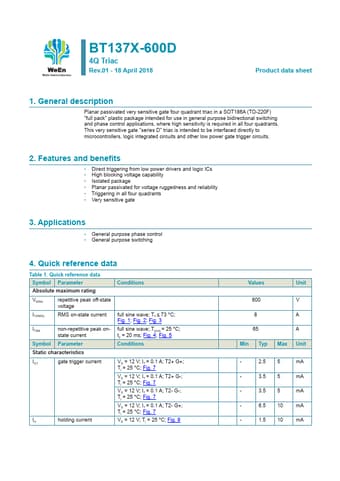

BT137X-600D Datasheet Preview — Preview of BT137X-600D PDF

Datasheet Details

Part number:

BT137X-600D

Manufacturer:

WeEn

File Size:

478.54 KB

Description:

4q triac.
