BTA312X-600E - 3Q Hi-Com Triac

WeEn

📥 Download Datasheet

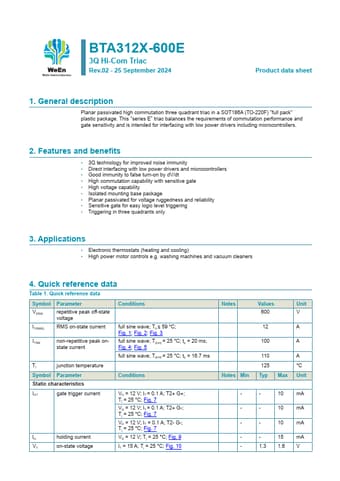

BTA312X-600E Datasheet Preview — Preview of BTA312X-600E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTA312X-600E
Manufacturer	WeEn
File Size	502.10 KB
Description	3Q Hi-Com Triac
Datasheet	BTA312X-600E-WeEn.pdf

BTA312X-600E Product details

Description

Planar passivated high commutation three quadrant triac in a SOT186A (TO-220F) "full pack" plastic package.

Features

3Q technology for improved noise immunity.
Direct interfacing with low power drivers and microcontrollers.
Good immunity to false turn-on by dV/dt.
High commutation capability with sensitive gate.
High voltage capability.
Isolated mounting base package.
Planar passivated for voltage ruggedness and reliability.
Sensitive gate for easy logic level triggering.
Triggering in three quadrants only 3.
