BTA316-800C - 3Q Hi-Com Triac

Product Overview

WeEn

📥 Download Datasheet

BTA316-800C 3Q Hi-Com Triac by WeEn - Datasheet Preview — Datasheet preview – BTA316-800C

Datasheet Details

Part number	BTA316-800C
Manufacturer	WeEn
File Size	466.44 KB
Description	3Q Hi-Com Triac
Datasheet	BTA316-800C Datasheet

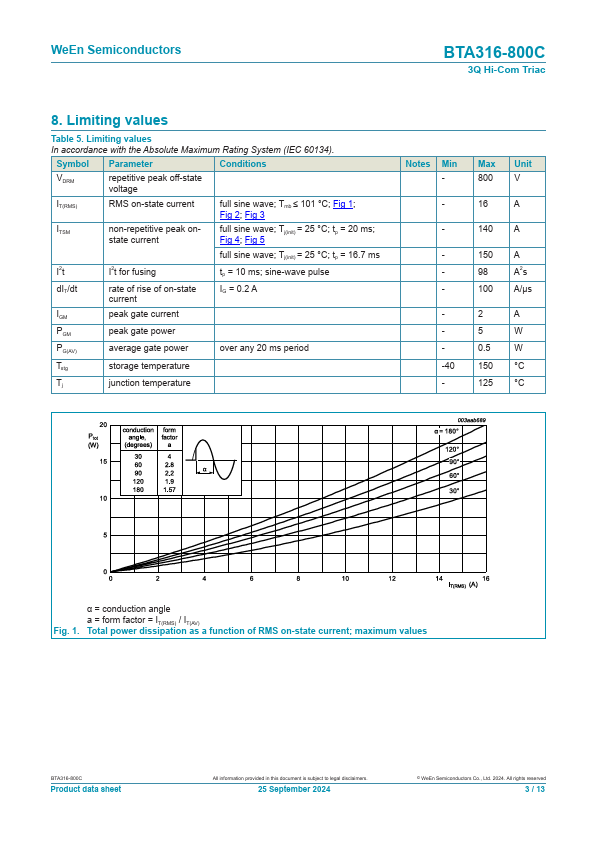

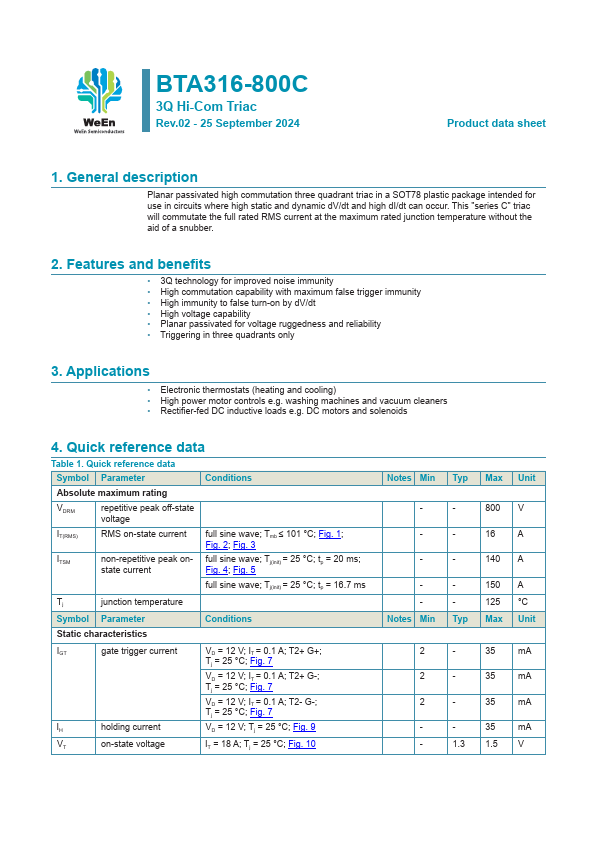

Additional preview pages of the BTA316-800C datasheet.

Product details

Description

Planar passivated high commutation three quadrant triac in a SOT78 plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur.

Features

3Q technology for improved noise immunity.
High commutation capability with maximum false trigger immunity.
High immunity to false turn-on by dV/dt.
High voltage capability.
Planar passivated for voltage ruggedness and reliability.
Triggering in three quadrants only 3.
