BYC30W-1200P Hyperfast power diode

BYC30W-1200P Hyperfast power diode Rev.01 - 16 June 2017 Product data sheet 1.General .
EEPPTM- Efficiency Enhanced Pt Planar diode in a SOD142 (2-leads TO247) plastic package. Fast switching.

BYC30W-1200P-WeEn.pdf

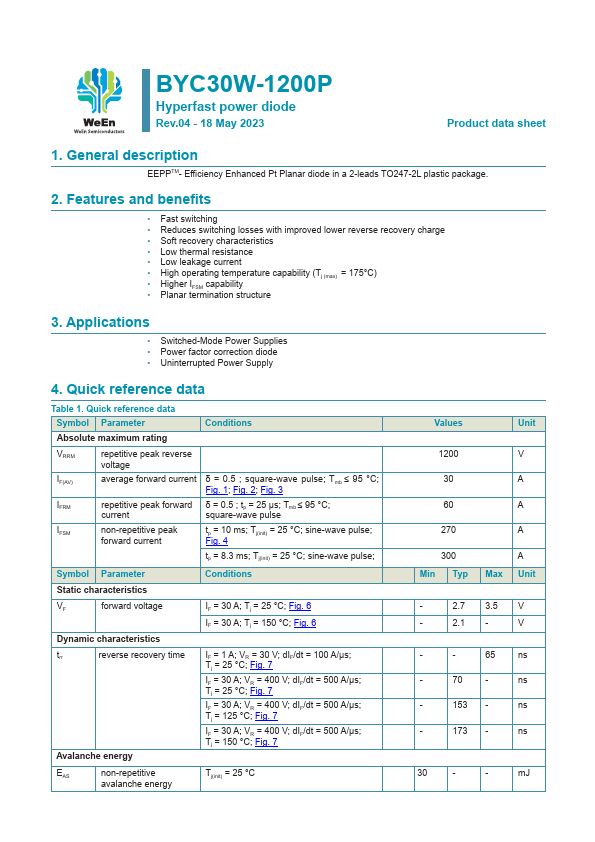

BYC30W-1200P Datasheet Preview — Preview of BYC30W-1200P PDF

Datasheet Details

Part number:

BYC30W-1200P

Manufacturer:

WeEn

File Size:

253.70 KB

Description:

Hyperfast power diode

Features

* Fast switching
* Reduces switching losses with improved lower reverse recovery charge
* Soft recovery characteristics
* Low thermal resistance
* Low leakage current
* High operating temperature capability (Tj (max) = 175°C)
* Higher IFSM capa

Applications

* Switched-Mode Power Supplies Power factor correction diode Uninterrupted Power Supply 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions VRRM IF(AV) IFRM IFSM repetitive peak reverse voltage average forward cu
