MAC223A8X

4Q Triac

WeEn

MAC223A8X Features

* High blocking voltage capability

* High noise immunity

* Isolated package

* Planar passivated for voltage ruggedness and reliability

* Triggering in all four quadrants 3. Applications

* General purpose motor control

* Protection Circuits 4.

MAC223A8X General Description

Planar passivated four quadrant triac in a SOT186A "full pack" plastic package intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, h.

MAC223A8X Datasheet (226.61 KB)

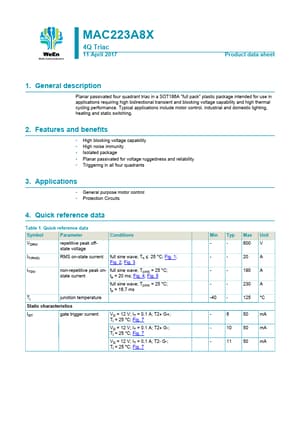

MAC223A8X Datasheet Preview — Preview of MAC223A8X PDF

Datasheet Details

Part number:

MAC223A8X

Manufacturer:

WeEn

File Size:

226.61 KB

Description:

4q triac.
