MUR560 - Ultrafast power diodes

Datasheet Summary

Description

Ultrafast power diode in a SMC package.

2.

Features

  • Fast switching.
  • SMC package.
  • High voltage capability.
  • Low forward voltage drop.
  • Low leakage current.
  • Low thermal resistance.
  • Soft recovery characteristic 3.

📥 Download Datasheet

Datasheet preview – MUR560

Datasheet Details

Part number MUR560
Manufacturer WeEn
File Size 508.29 KB
Description Ultrafast power diodes
Datasheet download datasheet MUR560 Datasheet

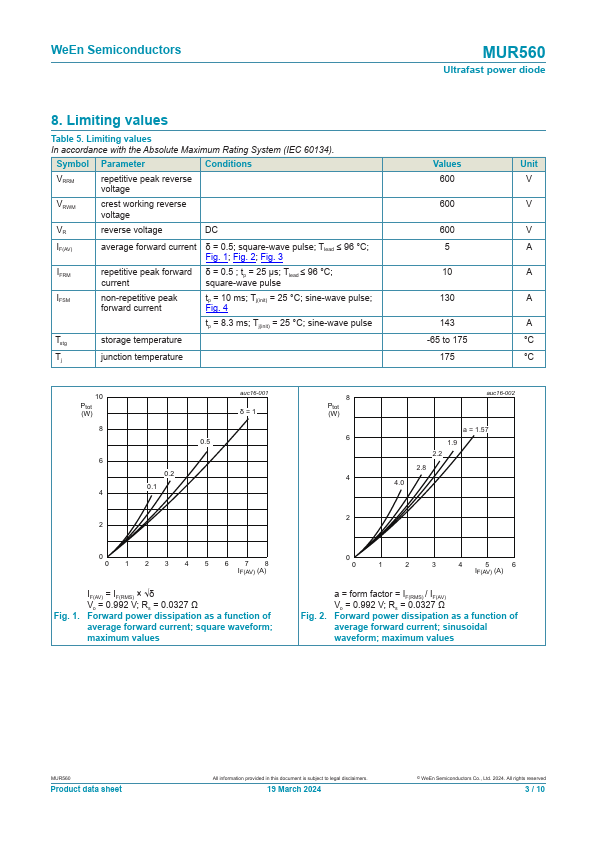

Additional preview pages of the MUR560 datasheet.

📁 Similar Datasheet

  • MUR560 - Super Fast Rectifiers (Luguang Electronic)
  • MUR560 - 5.0A Super Fast Rectifiers (JX)
  • MUR560 - Ultra Fast Recover diode (GOOD-ARK)
  • MUR560 - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
  • MUR560CT - 5.0A Super Fast Rectifiers (JX)
  • MUR560D - SUPER FAST RECTIFIERS (GME)
  • MUR560D - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
  • MUR560DA - Ultra-Fast Recovery Rectifier Diode (Yangzhou Yangjie)
  • MUR560F - Ultra Fast Recover diode (GOOD-ARK)
  • MUR560F - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
MUR560 Ultrafast power diode Rev.05 - 19 March 2024 Product data sheet 1. General description Ultrafast power diode in a SMC package. 2. Features and benefits • Fast switching • SMC package • High voltage capability • Low forward voltage drop • Low leakage current • Low thermal resistance • Soft recovery characteristic 3. Applications • Discontinuous Current Mode (DCM) Power Factor Correction (PFC) • High frequency switched-mode power supplies 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Values Absolute maximum rating VRRM repetitive peak reverse 600 voltage IF(AV) average forward current δ = 0.5; square-wave pulse; Tlead ≤ 96 °C; 5 Fig. 1; Fig. 2; Fig. 3 IFRM repetitive peak forward δ = 0.
