NCR100W-10M, SCR

NCR100W-10M SCR 27 June 2016 Product data sheet 1.General .
Planar passivated SCR with sensitive gate in a SOT223 surface mountable plastic package.

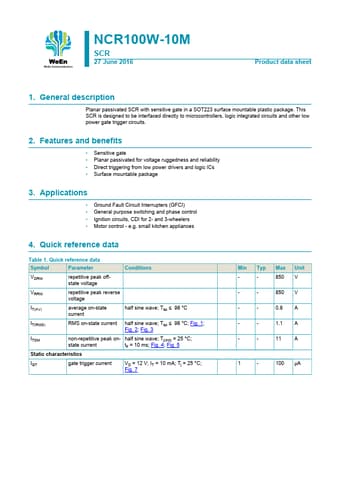

datasheet Preview Page 1 from Datasheet4u.com

NCR100W-10M-WeEn.pdf

NCR100W-10M Datasheet Preview — Preview of NCR100W-10M PDF

Datasheet Details

Part number:

NCR100W-10M

Manufacturer:

WeEn

File Size:

231.57 KB

Description:

SCR

Features

* Sensitive gate
* Planar passivated for voltage ruggedness and reliability
* Direct triggering from low power drivers and logic ICs

Applications

* Ground Fault Circuit Interrupters (GFCI)
* General purpose switching and phase control
* Ignition circuits, CDI for 2- and 3-wheelers
* Motor control - e. g. small kitchen appliances 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditio
