SMAJ45A, SMAJ5.0A Datasheet - WeEn

SMAJ45A, SMAJ5.0A, 400W Transient Voltage Suppressor

SMAJ Series 400W Transient Voltage Suppressor Rev.02 - 24 November 2023 Product data sheet 1.General .
SMAJ series, 400W transient voltage suppressor (TVS) in SMA package, designed to protect electronic circuits against damage induced by lightning surge.

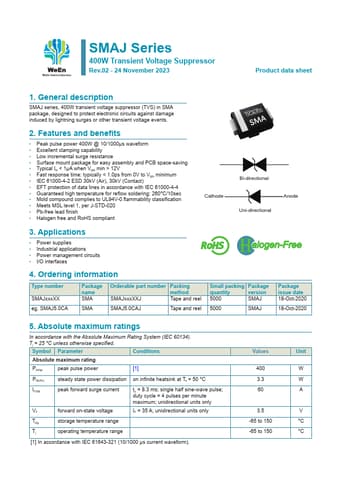

 datasheet Preview Page 1 from Datasheet4u.com

SMAJ5.0A-WeEn.pdf

This datasheet PDF includes multiple part numbers: SMAJ45A, SMAJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMAJ45A, SMAJ5.0A

Manufacturer:

WeEn

File Size:

582.57 KB

Description:

400W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: SMAJ45A, SMAJ5.0A.
Please refer to the document for exact specifications by model.

Features

* Peak pulse power 400W @ 10/1000μs waveform
* Excellent clamping capability
* Low incremental surge resistance
* Surface mount package for easy assembly and PCB space-saving
* Typical IR < 1μA when VBR min > 12V
* Fast response time: typically < 1.0ps

Applications

* Power supplies
* Industrial applications
* Power management circuits
* I/O interfaces h RoHS alogen-Free 4. Ordering information Type number SMAJxxxXX Package name SMA Orderable part number Packing method SMAJxxxXXJ Tape and reel eg. SMAJ5.0CA SMA SMAJ5.
