SOD10A - 200W Transient Voltage Suppressor

Download the SOD10A datasheet PDF (SOD5.0A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 200w transient voltage suppressor.

Description

SOD series, 200W transient voltage suppressor (TVS) in SOD123 package, designed to protect electronic circuit which induced by lightning surge or other transient voltage situation.

Features

Peak pulse power 200W @ 10/1000μs waveform.
Excellent clamping capability.
Low incremental surge resistance.
Surface mount package for easy assembly and board space saving.
Typical IR < 1μA When VR > 12V.
Fast response time: Typically less than 1.0ps from 0V to BV min.
IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact).
EFT protection of data lines in accordance with IEC 61000-4-4.
High temperature to reflow soldering gu.

📥 Download Datasheet

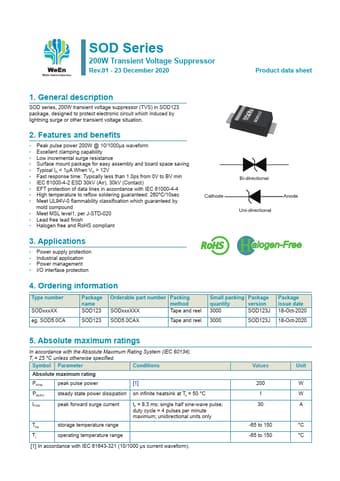

SOD10A 200w transient voltage suppressor by WeEn - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SOD5.0A-WeEn.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SOD10A
Manufacturer	WeEn
File Size	569.42 KB
Description	200W Transient Voltage Suppressor
Datasheet	SOD10A Datasheet

📁 Similar Datasheet

SOD123F - plastic surface-mounted package (NXP)

SOD123W - SMD (NXP)

SOD123W - surface mounted package (nexperia)

SOD151-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

SOD152-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

SOD153-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

SOD154-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

SOD155-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

SOD156-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

SOD157-SH - Surface Mount Glass Passivated Junction Rectifiers (LRC)

Full PDF Text Transcription

Click to expand full text

SOD Series 200W Transient Voltage Suppressor Rev.01 - 23 December 2020 Product data sheet 1. General description SOD series, 200W transient voltage suppressor (TVS) in SOD123 package, designed to protect electronic circuit which induced by lightning surge or other transient voltage situation. SOD123 2. Features and benefits • Peak pulse power 200W @ 10/1000μs waveform • Excellent clamping capability • Low incremental surge resistance • Surface mount package for easy assembly and board space saving • Typical IR < 1μA When VR > 12V • Fast response time: Typically less than 1.
