WN3S20H100CX Dual power Schottky diode

WeEn

Description

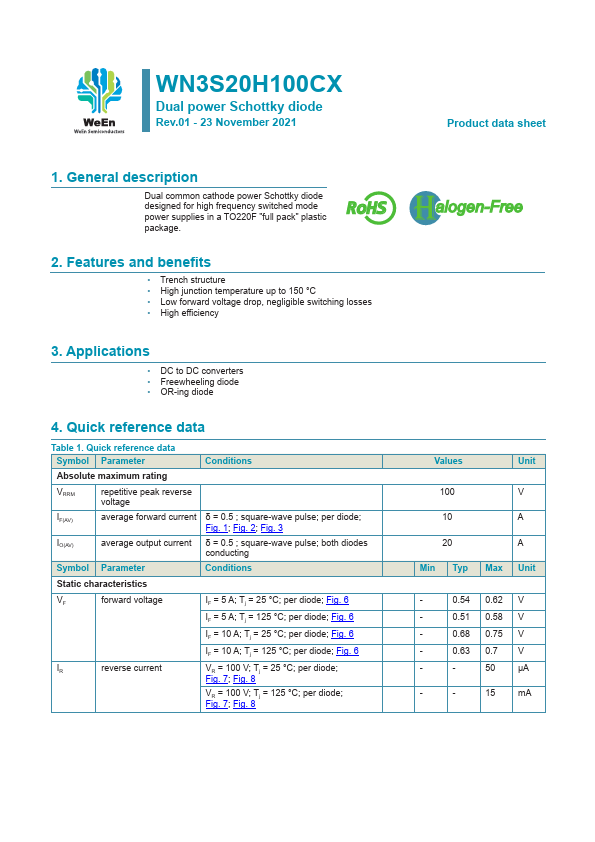

WN3S20H100CX Dual power Schottky diode Rev.01 - 23 November 2021 Product data sheet 1.General .
Dual common cathode power Schottky diode designed for high frequency switched mode power supplies in a TO220F "full pack" plastic package.

📥 Download Datasheet

WN3S20H100CX Datasheet Preview — Preview of WN3S20H100CX PDF

Datasheet Specifications

Part number: WN3S20H100CX
Manufacturer: WeEn
File Size: 382.91 KB
Datasheet: WN3S20H100CX-WeEn.pdf
Description: Dual power Schottky diode

Features

* Trench structure
* High junction temperature up to 150 °C
* Low forward voltage drop, negligible switching losses

Applications

* DC to DC converters
* Freewheeling diode
* OR-ing diode 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Absolute maximum rating VRRM repetitive peak reverse voltage IF(AV) average forward current δ = 0.5 ; square-wave pulse; per dio
