WN3S30H45C Dual power Schottky diode

WN3S30H45C Description

WN3S30H45C Dual power Schottky diode Rev.01 - 30 August 2022 Product data sheet 1.General .
Dual common cathode power Schottky diode designed for high frequency switched mode power supplies in a TO220 plastic package.

WN3S30H45C Features

* Trench structure
* High junction temperature up to 150 °C
* Low forward voltage drop, negligible switching losses

WN3S30H45C Applications

* DC to DC converters
* Freewheeling diode
* OR-ing diode
* Switched mode power supply rectifier 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions VRRM repetitive peak reverse voltage IF(AV) average forwar

📥 Download Datasheet

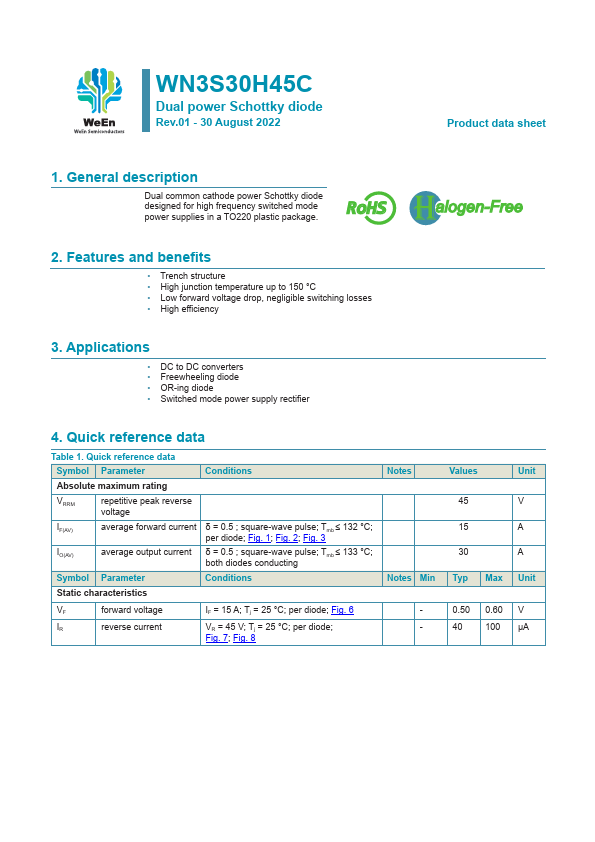

Preview of WN3S30H45C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WN3S30H45C
Manufacturer
WeEn
File Size
371.19 KB
Datasheet
WN3S30H45C-WeEn.pdf
Description
Dual power Schottky diode
