WSJM65R170X

Super-Junction Power MOSFET

WeEn

WSJM65R170X Features

* Superior FOM RDS(on)

* Qg

* Extremely low switching loss

* 100% avalanche tested 3. Applications

* high efficiency power supplies 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating VDS drain-source voltage VGS

WSJM65R170X General Description

WSJM65R170X is a high voltage N-channel MOSFET in TO220F package, which utilizes the advanced super-junction technology to provide superior FOM RDS(on)
* Qg among silicon based MOSFETs. It is particularly suitable for applications require extreme high efficiency and power density. RoHS halogen.

WSJM65R170X Datasheet (568.06 KB)

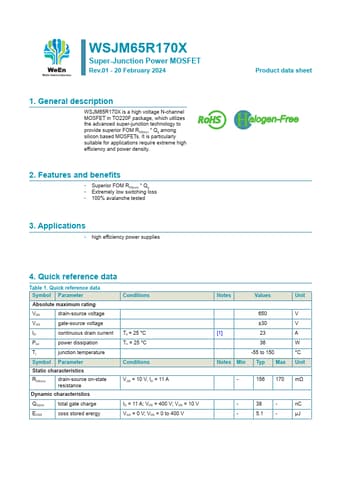

WSJM65R170X Datasheet Preview — Preview of WSJM65R170X PDF

Datasheet Details

Part number:

WSJM65R170X

Manufacturer:

WeEn

File Size:

568.06 KB

Description:

Super-junction power mosfet.
