WSJT65R075DW Datasheet - WeEn

Super-Junction Power MOSFET

WSJT65R075DW Features

* Superior FOM RDS(on)

* Qg

* Extremely low switching loss

* Integrated ultrafast body diode

* 100% avalanche tested 3. Applications

* LLC applications

* LEV charger

* Server power

* LED power 4. Quick reference data Table 1. Quick

WSJT65R075DW General Description

WSJT65R075DW is a high voltage N-channel MOSFET in TO247 package, which utilizes the advanced super-junction technology to provide superior FOM RDS(on) *Qg among silicon based MOSFETs. It is particularly suitable for applications require extreme high efficiency and power density. h RoHS alogen-.

WSJT65R075DW Datasheet (623.12 KB)

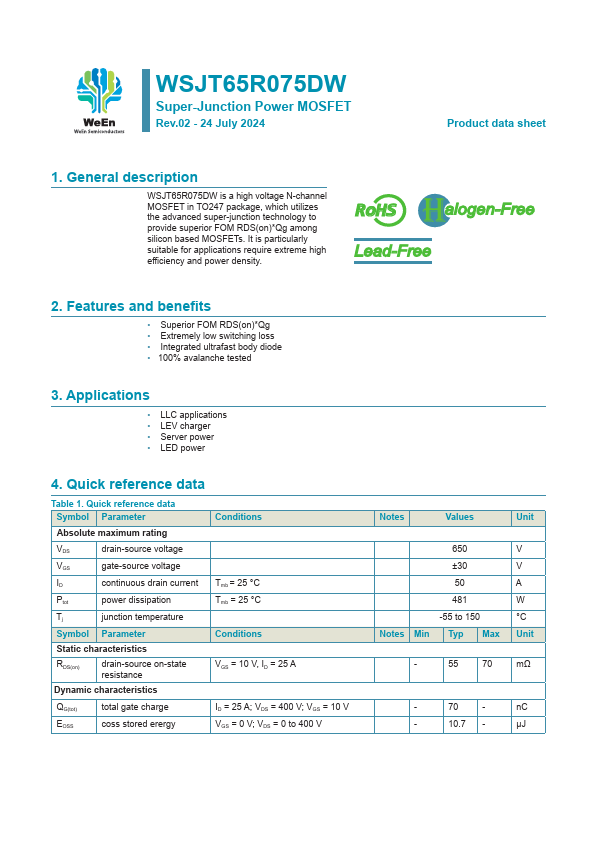

WSJT65R075DW Datasheet Preview — Preview of WSJT65R075DW PDF

Datasheet Details

Part number:

WSJT65R075DW

Manufacturer:

WeEn

File Size:

623.12 KB

Description:

Super-junction power mosfet.
