Z0103MA - 4Q Triac

Product Overview

WeEn

Datasheet Details

Part number	Z0103MA
Manufacturer	WeEn
File Size	282.50 KB
Description	4Q Triac
Datasheet	Z0103MA Datasheet

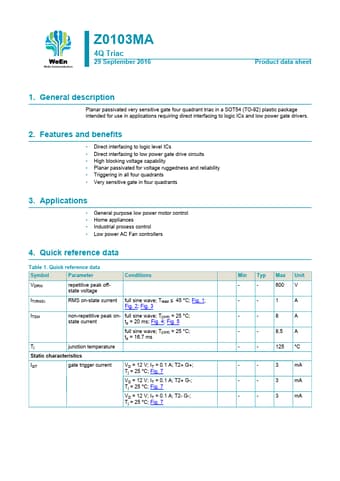

Additional preview pages of the Z0103MA datasheet.

Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT54 (TO-92) plastic package intended for use in applications requiring direct interfacing to logic ICs and low power gate drivers.

Features

Direct interfacing to logic level ICs.
Direct interfacing to low power gate drive circuits.
High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate in four quadrants 3.
