CG6263AM - 2Mb (128K x 16) Pseudo Static RAM

The CG6263AM by Weida Semiconductor is a 2Mb (128K x 16) Pseudo Static RAM. Below is the official datasheet preview.

📥 Download Datasheet

CG6263AM 2Mb (128K x 16) Pseudo Static RAM by Weida Semiconductor - Datasheet Preview — Official preview page of the **CG6263AM** 2Mb (128K x 16) Pseudo Static RAM datasheet (Weida Semiconductor).

Datasheet Details

Part number	CG6263AM
Manufacturer	Weida Semiconductor
File Size	254.54 KB
Description	2Mb (128K x 16) Pseudo Static RAM
Datasheet	CG6263AM_WeidaSemiconductor.pdf

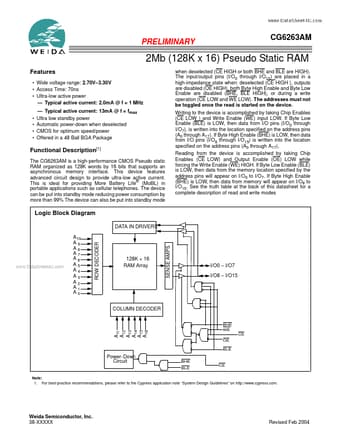

Additional preview pages of the CG6263AM datasheet.

CG6263AM Product details

Description

of read and write modes Functional Description[1] The CG6263AM is a high-performance CMOS Pseudo static RAM organized as 128K words by 16 bits that supports an asynchronous memory interface.This device

Features

Wide voltage range: 2.70V.
3.30V.
Access Time: 70ns.
Ultra-low active power.
Typical active current: 2.0mA @ f = 1 MHz.
Typical active current: 13mA @ f = fmax Ultra low standby power Automatic power-down when deselected CMOS for optimum speed/power Offered in a 48 Ball BGA Package when deselected (CE HIGH or both BHE and BLE are HIGH). The input/output pins (I/O0 through I/O15) are placed in a high-impe.
