BAS21H (BAS19H - BAS21H) Surface Mount Switching Diode

Weitron Technology

Description

www.DataSheet4U.com BAS19H/BAS20H BAS21H Surface Mount Switching Diode .

📥 Download Datasheet

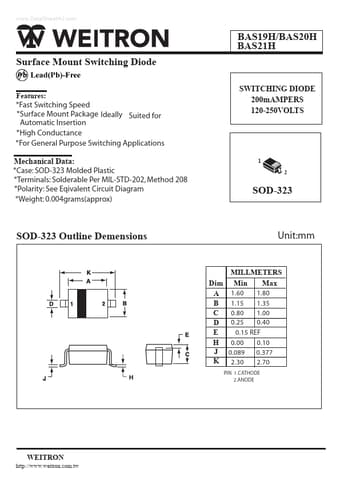

BAS21H Datasheet Preview — Preview of BAS21H PDF

Datasheet Specifications

Part number: BAS21H
Manufacturer: Weitron Technology
File Size: 301.64 KB
Datasheet: BAS21H_WeitronTechnology.pdf
Description: (BAS19H - BAS21H) Surface Mount Switching Diode

Features

* Fast Switching Speed
* Surface Mount Package Ideally Suited for Automatic Insertion
* High Conductance

Applications

* Mechanical Data:
* Case: SOD-323 Molded Plastic
* Terminals: Solderable Per MIL-STD-202, Method 208
* Polarity: See Eqivalent Circuit Diagram
* Weight: 0.004grams(approx) SWITCHING DIODE 200mAMPERS 120-250VOLTS 1 2 SOD-323 SOD-323 Outline Demensions Unit:mm MILLMETERS Min Max Dim 1
