MUN2111 Datasheet (Weitron Technology)

MUN2111, PNP Transistor

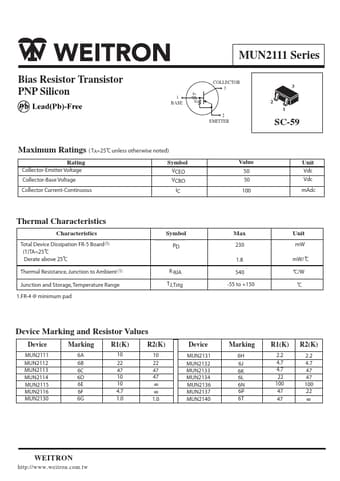

MUN2111 Series Bias Resistor Transistor PNP Silicon COLLECTOR 3 1 BASE R1 R2 3 2 1 2 EMITTER SC-59 Maximum Ratings ( TA=25 C unless otherwise noted) Rating Collector-Emitter Voltage Collector-Base Voltage Collector Current-Continuous Symbol VCEO VCBO IC Value 50 50 100 Unit Vdc Vdc mAdc Thermal Characteristics Characteristics Total Device Dissipation FR-5 Board (1) (1)TA=25 C Derate above 25 C Thermal Resistance, Junction to Ambient (1) Junction and Storage, Temperature Range 1.FR-4 @ mi
