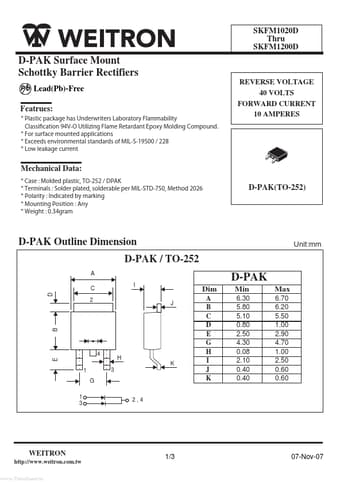

SKFM1030
SKFM1020D Thru SKFM1200D
D-PAK Surface Mount Schottky Barrier Rectifiers
P b Lead(Pb)-Free
REVERSE VOLTAGE 40 VOLTS FORWARD CURRENT 10 AMPERES
Featrues:
- Plastic package has Underwriters Laboratory Flammability Classi cation 94V-O Utilizing Flame Retardant Epoxy Molding pound.
- For surface mounted applications
- Exceeds environmental standards of MIL-S-19500 / 228
- Low leakage current
Mechanical Data:
- Case : Molded plastic, TO-252 / DPAK
- Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
- Polarity : Indicated by marking
- Mounting Position : Any
- Weight : 0.34gram
D-PAK(TO-252)
D-PAK Outline Dimension D-PAK / TO-252
Unit:mm
D-PAK
Dim
A B C D E G H I J K
Min
6.30 5.80 5.10 0.80 2.50 4.30 0.08 2.10 0.40 0.40
Max
6.70 6.20 5.50 1.00 2.90 4.70 1.00 2.50 0.60 0.60
1 3 2,4
WEITRON http://.weitron..tw
.Data Sheet.in
1/3
07-Nov-07
SKFM1020D Thru SKFM1200D
MAXIMUM RATINGS (@ TA=25° C unless otherwise noted)...
