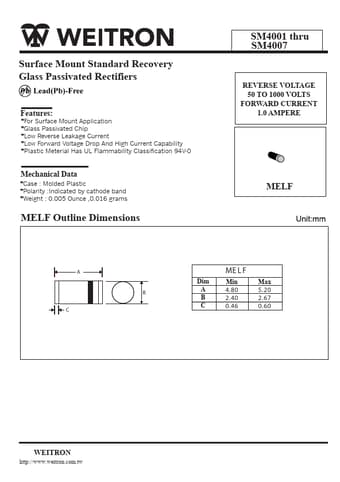

SM4002 Features
* For Surface Mount Application
* Glass Passivated Chip
* Low Reverse Leakage Current
* Low Forward Voltage Drop And High Current Capability
* Plastic Meterial Has UL Flammability Classification 94V-0 REVERSE VOLTAGE 50 TO 1000 VOLTS FORWARD CURRENT 1.0 AMPERE Mechanical Data
Datasheet Details
SM4002, SM4007
Weitron Technology
324.03 KB
Surface mount standard recovery glass passivated rectifiers.
This datasheet PDF includes multiple part numbers: SM4002, SM4007.
Please refer to the document for exact specifications by model.
