SMC5353B, SMC5342B - Surface Mount Zener Diodes

Weitron Technology

📥 Download Datasheet

SMC5353B Datasheet Preview — This datasheet PDF includes multiple part numbers: SMC5353B, SMC5342B. Please refer to the document for exact specifications by model.

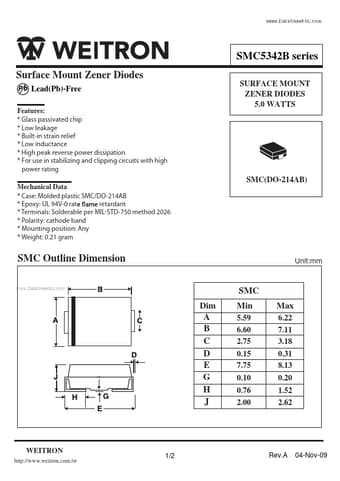

datasheet Preview Page 2

Datasheet Details

Part number: SMC5353B, SMC5342B
Manufacturer: Weitron Technology
File Size: 89.95 KB
Datasheet: SMC5342B_WeitronTechnology.pdf
Description: Surface Mount Zener Diodes
Note: This datasheet PDF includes multiple part numbers: SMC5353B, SMC5342B.
Please refer to the document for exact specifications by model.

SMC5353B Product details

Features

Glass passivated chip.
Low leakage.
Built-in strain relief.
Low inductance.
High peak reverse power dissipation.
For use in stabilizing and clipping circuits with high power rating Mechanical Data.
Case: Molded plastic SMC/DO-214AB.
Epoxy: UL 94V-0 rat retardant.
Terminals: Solderable per MIL-STD-750 method 2026.
Polarity: cathode band.
Mounting position: Any.
Weight: 0.21 gram.
