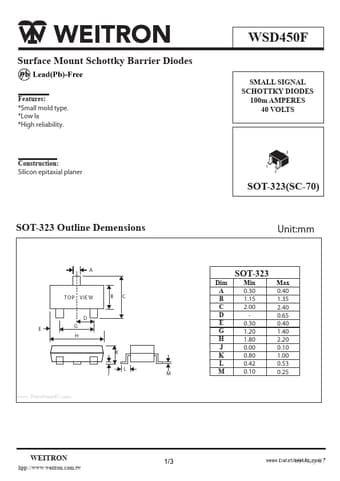

WSD450F
Features
:
- Small mold type.
- Low IR
- High reliability.
Construction: Silicon epitaxial planer
1 2
SOT-323(SC-70)
SOT-323 Outline Demensions
Unit:mm
T OP V IE W
D E G H K L
Dim A B C D E G H J K L M
SOT-323
Min 0.30 1.15 2.00 0.30 1.20 1.80 0.00 0.80 0.42 0.10
Max 0.40 1.35 2.40 0.65 0.40 1.40 2.20 0.10 1.00 0.53 0.25
..
WEITRON hpp://.weitron..tw
1/3
16-Aug-07
Maximum Ratings
Characteristic Reverse Voltage (repetitive peak) Reverse Voltage (DC) Average rectified forward current Forward Current surge peak (60Hz, 1cyc) Operating Junction Temperature Range Storage Temperature Range (Ta=25°C Unless otherwise noted) Symbol VRM VR IO IFSM TJ Tstg Value 45 40 100 1 125 -40 to +125
WEITRON
Unit Volts m A m A A °C °C
Electrical Characteristics
Characteristic Forward Voltage IF=10m A Capacitance between terminals (VR=10V, f=1.0MHz) Reverse currect (VR=10V)
(TA=25 C Unless otherwise noted) Symbol VF CT IR Min Typ 6.0 Max 0.45 1.0 Unit Volts PF µAdc
Device...
