SAC8.0, SAC50 Low Capacitance Tranient Voltage Suppressor

SAC8.0 Description

SAC 5.0 thru SAC 50 Low Capacitance Tranient Voltage Suppressor Peak Pulse Power 500 Watts Sand-off Voltage 5.0 to 50 Volts .

SAC8.0 Applications

* High temperature soldering guaranteed: 265 C/10sec, 0.375"(9.5mm) lead length, 51bs, (2.3kg)tension. Mechanical Data:
* Case: JEDEC DO-15 molded plastic over a passivated junction.
* Terminal: Solder plated axial leads solderable per. MIL-STD-750, method 2026
* Polarity: Color ba

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SAC8.0, SAC50. Please refer to the document for exact specifications by model.

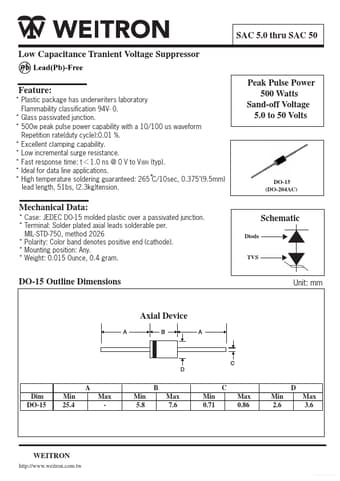

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SAC8.0, SAC50
Manufacturer
Weitron
File Size
110.17 KB
Datasheet
SAC50_Weitron.pdf
Description
Low Capacitance Tranient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SAC8.0, SAC50.
Please refer to the document for exact specifications by model.
