SMCJ220A, SMCJ50A Transient Voltage Suppressor

SMCJ220A Description

SMCJ Series 1500W Surface Mount Transient Voltage Suppressor P b Lead(Pb)-Free .

SMCJ220A Applications

* in order to optimize board space
* Low proļ¬le package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Excellent clamping capability
* Repetition Rate(duty cycle):0.05%
* Fast response time: typically less than 1.0ps from 0 Volts to BV min
* Typ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMCJ220A, SMCJ50A. Please refer to the document for exact specifications by model.

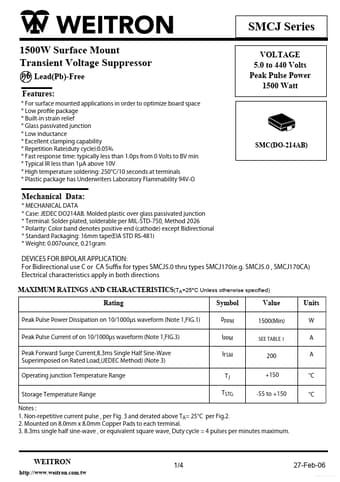

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMCJ220A, SMCJ50A
Manufacturer
Weitron
File Size
208.80 KB
Datasheet
SMCJ50A_Weitron.pdf
Description
Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SMCJ220A, SMCJ50A.
Please refer to the document for exact specifications by model.
