SR140, SR120 Axial Lead General Purpose Plastic Rectifier

SR140 Description

SR120 thru SR1100 Axial Lead General Purpose Plastic Rectifier P b Lead(Pb)-Free .

SR140 Features

* Low forward voltage drop.
* High current capability.
* High reliability.
* High surge current capability.
* Epitaxial construction. GENERAL PURPOSE RECTIFIERS 1.0 AMPERES 20-100 VOLTS Mechanical Data:
* Case: Molded plastic.
* Epoxy: UL 94V-0 rate flame retardant.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR140, SR120. Please refer to the document for exact specifications by model.

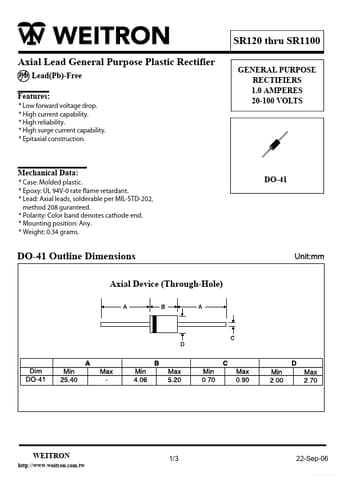

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SR140, SR120
Manufacturer
Weitron
File Size
228.55 KB
Datasheet
SR120_Weitron.pdf
Description
Axial Lead General Purpose Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: SR140, SR120.
Please refer to the document for exact specifications by model.
