WT5041 8-Bit uC

WT5041 Description

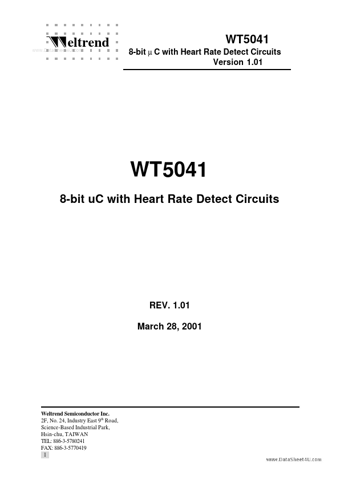

www.DataSheet4U.com eltrend WT5041 8-bit ยต C with Heart Rate Detect Circuits Version 1.01 WT5041 8-bit uC with Heart Rate Detect Circuits REV.1.0.
The WT5041 is a high-performance, low-cost, CMOS 8-bit single-chip micro controller with on-chip OP Amp (OPA) for heart rate detect and 128 segments L.

WT5041 Features

* u u u u 8-bit single chip micro controller with 8Kbytes ROM and 256 Bytes SRAM Wide voltage operating range from 2.4 V to 5.5 V Built-in 32.768KHz OSC circuits. 14 interrupt sources, 14 halt mode release sources (warm start), 8 off mode wake up sources (cold start); all sources have independent latc

WT5041 Applications

* where heart rate and LCD display are required, for example sports bicycle meter, heart rate meter and heart rate watch. This chip has 8-bit CPU, RAM, ROM, I/Os, one 16-bit timer/counters, dual 8-bit timer, interrupt controller, three 8-bit PWM D/A output, resister to frequency converter (RFC), heart
