WT7502 - PC POWER SUPPLY SUPERVISOR

Description

The WT7502 provides protection circuits, power good output (PGO), fault protection latch (FPOB), and a protection detector function (PSONB) control.

It can minimize external components of switching power supply systems in personal computer.

Features

  • The Over / Under Voltage Detector (OVD / UVD) monitors V33, V5 and VCC input voltage.
  • Both of the power good output (PGO) and fault protection latch (FPOB) are Open Drain Output.
  • 75 ms time delay for UVD.
  • 300 ms time delay for PGO.
  • 38 ms for PSONB input signal De.
  • bounce.
  • 73 us for PGI / UVD internal signal De.
  • glitches.
  • 55 us for OVD internal signal De.
  • glitches.
  • 3.5 ms time delay for PSONB turn.

📥 Download Datasheet

Datasheet preview – WT7502

Datasheet Details

Part number WT7502
Manufacturer Weltrend Semiconductor
File Size 202.33 KB
Description PC POWER SUPPLY SUPERVISOR
Datasheet download datasheet WT7502 Datasheet
Additional preview pages of the WT7502 datasheet.

📁 Similar Datasheet

  • WT7510 - PC POWER SUPPLY SUPERVISOR (Weltrend)
  • WT751002 - PC POWER SUPPLY SUPERVISOR (Weltrend)
  • WT751002S - PC POWER SUPPLY SUPERVISOR (Weltrend)
  • WT7512 - PC POWER SUPPLY SUPERVISOR (Weltrend)
  • WT7513 - Protection Detector (Weltrend)
  • WT7514L - PWM Controller (Weltrend)
  • WT7515 - PC POWER SUPPLY SUPERVISOR (Weltrend)
  • WT7520 - PC Power Supply PWM (Weltrend)
  • WT7522 - POWER SUPPLY PWM SUPERVISOR (Weltrend)
  • WT7525Y - PC POWER SUPPLY SUPERVISOR (Weltrend)
Other Datasheets by Weltrend Semiconductor
  • WT7502V - PC POWER SUPPLY SUPERVISOR
  • WT7518 - PC POWER SUPPLY SUPERVISOR
  • WT7518D - PC POWER SUPPLY SUPERVISOR
  • WT7518L - PC POWER SUPPLY SUPERVISOR
  • WT7525 - PC POWER SUPPLY SUPERVISOR

Full PDF Text Transcription

Click to expand full text

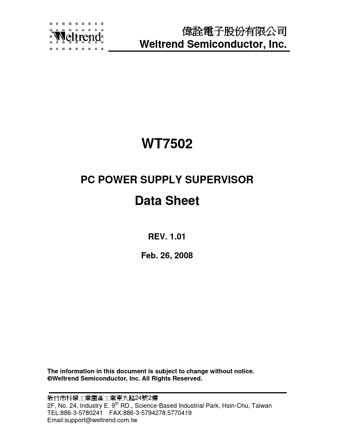

www.DataSheet.co.kr Weltrend Semiconductor, Inc. ` WT7502 PC POWER SUPPLY SUPERVISOR Data Sheet REV. 1.01 Feb. 26, 2008 The information in this document is subject to change without notice. ©Weltrend Semiconductor, Inc. All Rights Reserved. 242 2F, No. 24, Industry E. 9th RD., Science-Based Industrial Park, Hsin-Chu, Taiwan TEL:886-3-5780241 FAX:886-3-5794278.5770419 Email:support@weltrend.com.tw Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr WT7502 Rev. 1.01 GENERAL DESCRIPTION The WT7502 provides protection circuits, power good output (PGO), fault protection latch (FPOB), and a protection detector function (PSONB) control. It can minimize external components of switching power supply systems in personal computer.
