Datasheet Specifications
- Part number
- WT272C
- Manufacturer
- Weltrend
- File Size
- 123.93 KB
- Datasheet
- WT272C_Weltrend.pdf
- Description
- (WT272C / WT274C) Dual/Quad Low Power CMOS OP Amplifiers
Description

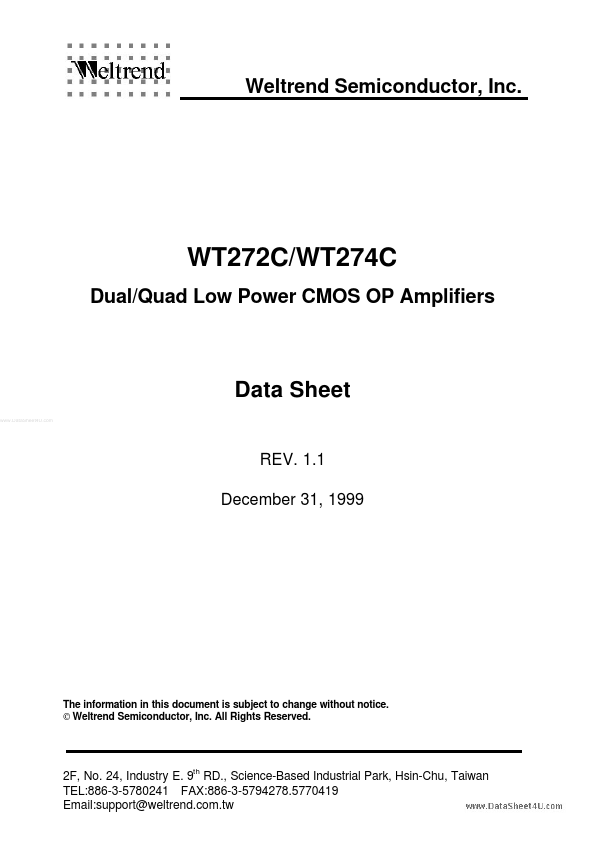

Weltrend Semiconductor, Inc.WT272C/WT274C Dual/Quad Low Power CMOS OP Amplifiers Data Sheet www.DataSheet4U.com REV.1.1 December 31, 1999 The in.
Features

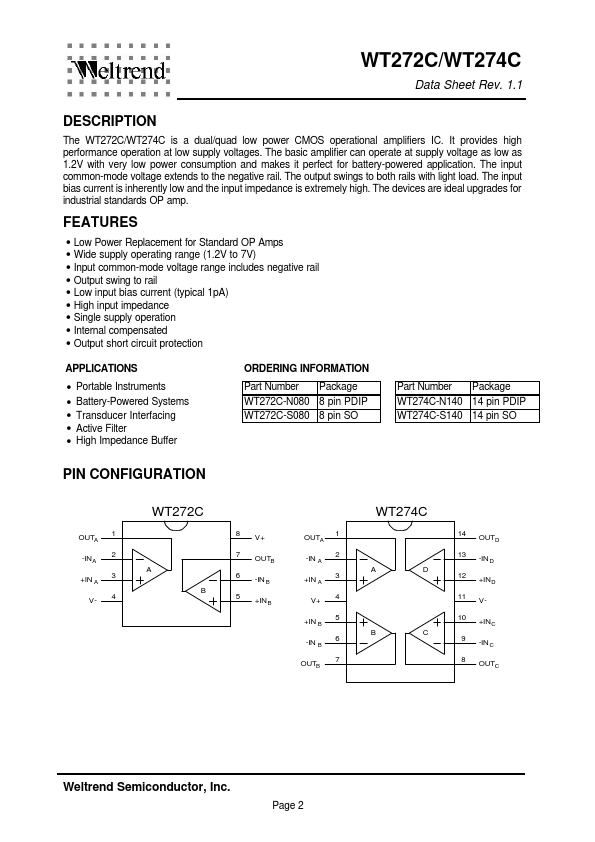

* Low Power Replacement for Standard OP Amps Wide supply operating range (1.2V to 7V) Input common-mode voltage range includes negative rail Output swing to rail Low input bias current (typical 1pA) High input imApplications
* Portable Instruments Battery-Powered Systems Transducer Interfacing Active Filter High Impedance Buffer PIN CONFIGURATION WT272C OUTA -IN A +IN A V1 2 3 4 A B 8 7 6 5 V+ OUTB -IN B +IN B OUTA -IN A +IN A V+ +IN B -IN B OUTB 1 2 3 4 5 6 7 B C A D WTWT272C Distributors
