WT7527V - PC POWER SUPPLY SUPERVISOR

Description

The WT7527V provides protection circuits, power good output (PGO), fault protection latch (FPOB), and a protection detector function (PSONB) control.

It can minimize external components of switching power supply systems in personal computer.

Features

  • The Over Voltage Detector (OVD) monitors VX, V33, V5, V12A and V12B input voltage.
  • The Under Voltage Detector (UVD) monitors V33, V5, V12A and V12B input voltage.
  • The Over Current Detector (OCD) monitors I33&33, I5&V5, I12A&V12A and I12B&V12B input pins.
  • The VX > 1.2V provide an extra protection.
  • Both of the power good output (PGO) and fault protection latch (FPOB) are Open Drain Output.
  • 75 / 600 ms time delay for UVD / OCD / VX.

📥 Download Datasheet

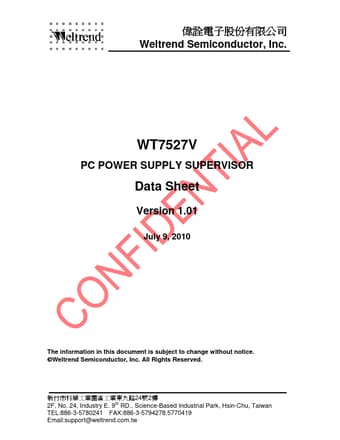

Datasheet preview – WT7527V
