WV3HG264M72EER-PD4 - 1GB - 2x64Mx72 DDR2 SDRAM REGISTERED

White Electronic Designs

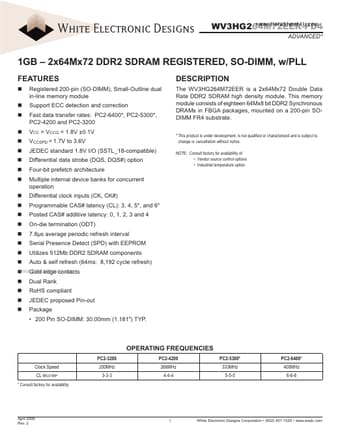

WV3HG264M72EER-PD4 Datasheet Preview — Preview of WV3HG264M72EER-PD4 PDF

Datasheet Details

Part number	WV3HG264M72EER-PD4
Manufacturer	White Electronic Designs
File Size	252.14 KB
Description	1GB - 2x64Mx72 DDR2 SDRAM REGISTERED
Datasheet	WV3HG264M72EER-PD4_WhiteElectronicDesigns.pdf

WV3HG264M72EER-PD4 Product details

Description

The WV3HG264M72EER is a 2x64Mx72 Double Data Rate DDR2 SDRAM high density module. This product is under development, is not qualiﬁed or characterized and is subject to change or cancellation without notice. Vendor source control options Industrial temperature option Dual Rank RoHS compliant JEDE

Features

Registered 200-pin (SO-DIMM), Small-Outline dual in-line memory module Support ECC detection and correction Fast data transfer rates: PC2-6400.
, PC2-5300.
, PC2-4200 and PC2-3200 VCC = VCCQ = 1.8V ±0.1V VCCSPD = 1.7V to 3.6V JEDEC standard 1.8V I/O (SSTL_18-compatible) Differential data strobe (DQS, DQS#) option Four-bit prefetch architecture Multiple internal device banks for concurrent operation Differential clock inputs (CK, CK#) Programmable CAS# latency (CL): 3, 4, 5.
, and 6.
