W2SW0001, W2SW0001-1 Datasheet - Wi2Wi

W2SW0001 802.11 b/g System-in-Package

www.DataSheet4U.com W2SW0001 - Specifications W2SW0001 - 802.11 b/g System-in-Package The W2SW0001 is a complete 802.11 b/g radio solution based on the industry standard Marvell 8686 architecture. Designed for handheld or portable warehousing/logistics, medical, and industrial applications, it is a complete WiFi solution that includes an LDO for single rail operation, all crystals, all ltering, local memory for MAC address storage, and diagnostics capability. A full array of certi cations have .

W2SW0001 Features

* - Small form factor SiP solution, 9.5mm x 9.5mm x1.4mm, 81 Pin LGA, .75mm pitch - Low power consumption and power save mode - Full support for 802.11 e(QOS) and 802.11i (Security) - Integrated RF-friendly LDO for single rail operation - Integrated PA, EEPROM, Balun, and clocking - Optimized front-en

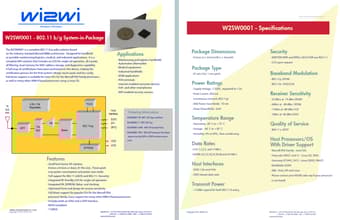

W2SW0001-1_Wi2Wi.pdf

This datasheet PDF includes multiple part numbers: W2SW0001, W2SW0001-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

W2SW0001, W2SW0001-1

Manufacturer:

Wi2Wi

File Size:

1.41 MB

Description:

802.11 b/g system-in-package.

Note:

This datasheet PDF includes multiple part numbers: W2SW0001, W2SW0001-1.
Please refer to the document for exact specifications by model.
