W78C31B

8-Bit Microcontroller

W78C31B Features

* 8-bit CMOS microcontroller

* Fully static design

* Low standby current at full supply voltage

* DC-40 MHz operation

* 128 bytes of on-chip scratchpad RAM

* ROMless operation

* 64K bytes program memory address space

* 64K bytes data me

W78C31B General Description

The W78C31B microcontroller supplies a wider frequency range than most 8-bit microcontrollers on the market. It is compatible with the industry standard 80C31 microcontroller series. The W78C31B contains four 8-bit bidirectional parallel ports, two 16-bit timer/counters, and a serial port. These per.

W78C31B Datasheet (219.67 KB)

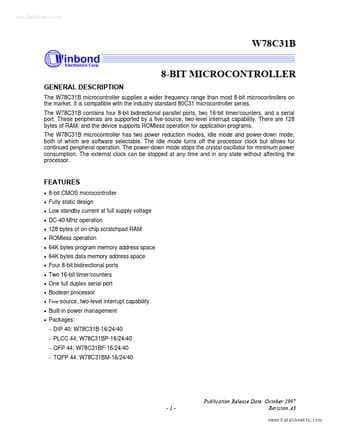

Preview of W78C31B PDF

Datasheet Details

Part number:

W78C31B

Manufacturer:

Winbond Electronics

File Size:

219.67 KB

Description:

8-bit microcontroller.
