ISD5116 Advance Information Single-Chip Voice Record/Playback Device Up to 16-Minute Duration with Digital Storage Capability .
The ISD5116 ChipCorder Product provides high quality, fully integrated, single-chip Record/Playback solutions for 8- to 16-minute messaging applicati.

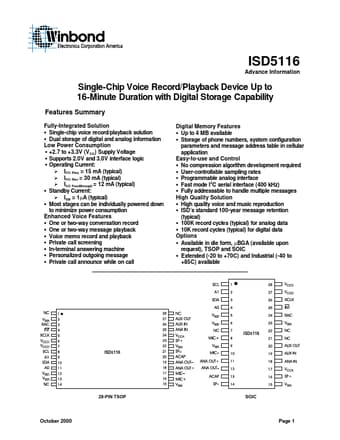

datasheet Preview Page 1 from Datasheet4u.com

ISD-5116.pdf

ISD5116 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISD5116, ISD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISD5116, ISD

Manufacturer:

Winbond

File Size:

735.34 KB

Description:

Single-Chip Voice Record/Playback

Note:

This datasheet PDF includes multiple part numbers: ISD5116, ISD.
Please refer to the document for exact specifications by model.

Features

* Summary Fully-Integrated Solution ! Single-chip voice record/playback solution ! Dual storage of digital and analog information Low Power Consumption ! +2.7 to +3.3V (VCC) Supply Voltage ! Supports 2.0V and 3.0V interface logic ! Operating Current: " ICC Play = 15 mA (typical) " ICC Rec = 30 mA (typ

Applications

* that are ideal for use in cellular phones, automotive communications, GPS/navigation systems and other portable products. The ISD5116 product is an enhancement 2 of the ISD5000 architecture, providing: 1) the I C serial port - address, control and duration selection 2 are accomplished through an I C
