W24100 - 128K x 8 CMOS STATIC RAM

Winbond

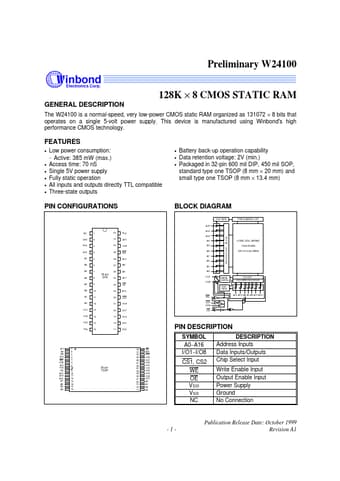

W24100 Datasheet Preview — Preview of W24100 PDF

Datasheet Details

Part number	W24100
Manufacturer	Winbond
File Size	167.94 KB
Description	128K x 8 CMOS STATIC RAM
Datasheet	W24100_Winbond.pdf

W24100 Product details

Description

128K × 8 CMOS STATIC RAM The W24100 is a normal-speed, very low-power CMOS static RAM organized as 131072 × 8 bits that operates on a single 5-volt power supply.This device is manufactured using Winbond's high performance CMOS technology.

Features

Low power consumption:.
Active: 385 mW (max. ).
Access time: 70 nS.
Single 5V power supply.
Fully static operation.
All inputs and outputs directly TTL compatible.
Three-state outputs.
Battery back-up operation capability.
Data retention voltage: 2V (min. ).
Packaged in 32-pin 600 mil DIP, 450 mil SOP, standard type one TSOP (8 mm × 20 mm) and small type one TSOP (8 mm × 13.4 mm) PIN.
