W24258 - 32K X 8 CMOS STATIC RAM

Datasheet Summary

Description

The W24258 is a normal speed, very low power CMOS static RAM organized as 32768 × 8 bits that operates on a wide voltage range from 2.7V to 5.5V power supply.

The W24258 family, W2425870LE and W24258-70LI, can meet requirement of various operating temperature.

Features

  • Low power consumption:.
  • Active: 350 mW (max. ).
  • Standby: 6 µW (max. )/3V 25 µW (max. )/5V Access time: 70 nS (max. )/5V 100 nS (max. )/3V Single 3V/5V power supply Fully static operation.
  • All inputs and outputs directly TTL compatible Three-state outputs Battery back-up operation capability Data retention voltage: 2V (min. ) Packaged in 28-pin 600 mil DIP, 330 mil SOP and standard type one TS.

📥 Download Datasheet

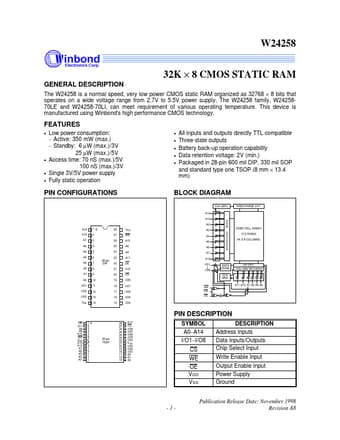

Datasheet preview – W24258
