W24258-55LL - 32K x8 CMOS STATIC RAM

Datasheet Summary

Description

The W24258/LL is a normal speed, very low power CMOS static RAM organized as 32768 × 8 bits that operates on a single 5-volt power supply.

performance CMOS technology.

Features

Low power consumption:.
Active: 350 mW (max. ).
Standby: 25 µW (max. ).
Access time: 55/70 nS (max. ).
Single 5V power supply.
Fully static operation.
All inputs and outputs directly TTL compatible.
Three-state outputs.
Battery back-up operation capability.
Data retention voltage: 2V (min. ).
Packaged in 28-pin 600 mil DIP, 330 mil SOP and standard type one TSOP (8 mm × 13.4 mm) PIN.

Datasheet Details

Part number	W24258-55LL
Manufacturer	Winbond
File Size	176.71 KB
Description	32K x8 CMOS STATIC RAM
Datasheet	W24258-55LL Datasheet

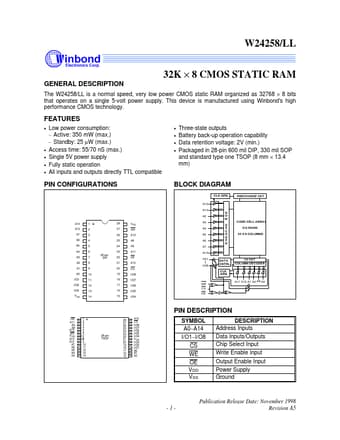

Additional preview pages of the W24258-55LL datasheet.

📁 Similar Datasheet

W241 - Dual N-Channel 40V MOSFET (VBsemi)

W2416 - 2K x 8 CMOS SRAM (Winbond Electronics)

W2416NC200 - GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER (PST)

W245 - Dual N-Channel 30V MOSFET (VBsemi)

W245A - n-channel JFET (Siliconix)

W245B - n-channel JFET (Siliconix)

W245C - n-channel JFET (Siliconix)

W24NM60N - STW24NM60N (STMicroelectronics)

Full PDF Text Transcription

Click to expand full text

W24258/LL GENERAL DESCRIPTION 32K × 8 CMOS STATIC RAM The W24258/LL is a normal speed, very low power CMOS static RAM organized as 32768 × 8 bits that operates on a single 5-volt power supply. This device is manufactured using Winbond's high performance CMOS technology. FEATURES • Low power consumption: − Active: 350 mW (max.) − Standby: 25 µW (max.) • Access time: 55/70 nS (max.) • Single 5V power supply • Fully static operation • All inputs and outputs directly TTL compatible • Three-state outputs • Battery back-up operation capability • Data retention voltage: 2V (min.) • Packaged in 28-pin 600 mil DIP, 330 mil SOP and standard type one TSOP (8 mm × 13.
