W6662CF, SCANNER ANALOG FRONT END

Preliminary W6662CF SCANNER ANALOG FRONT END 1.GENERAL .
The W6662 is a highly integrated CCD/CIS analog front end signal processor.

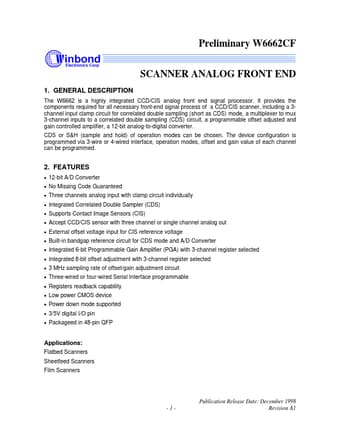

datasheet Preview Page 1 from Datasheet4u.com

W6662CF_Winbond.pdf

W6662CF Datasheet Preview — Preview of W6662CF PDF

Datasheet Details

Part number:

W6662CF

Manufacturer:

Winbond

File Size:

264.34 KB

Description:

SCANNER ANALOG FRONT END

Features

* 12-bit A/D Converter
* No Missing Code Guaranteed
* Three channels analog input with clamp circuit individually
* Integrated Correlated Double Sampler (CDS)
* Supports Contact Image Sensors (CIS)
* Accept CCD/CIS sensor with three channel or single c

Applications

* Flatbed Scanners Sheetfeed Scanners Film Scanners Publication Release Date: December 1998 - 1 - Revision A1 3. PIN CONFIGURATION Preliminary W6662CF VRDB VRDB VRDT VRDT AVDD NC AVSS OEN DOUT11 DOUT10 DOUT9 AVDD VRDC VREF VINR AVSS VING AVSS VINB AVSS NC AVDD CISREF PAOUT Winbond W6662CF 48 47
