W83194R-630A - 166MHZ CLOCK FOR SIS CHIPSET

Winbond

📥 Download Datasheet

W83194R-630A Datasheet Preview — Preview of W83194R-630A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	W83194R-630A
Manufacturer	Winbond
File Size	159.88 KB
Description	166MHZ CLOCK FOR SIS CHIPSET
Datasheet	W83194R-630A_Winbond.pdf

W83194R-630A Product details

Description

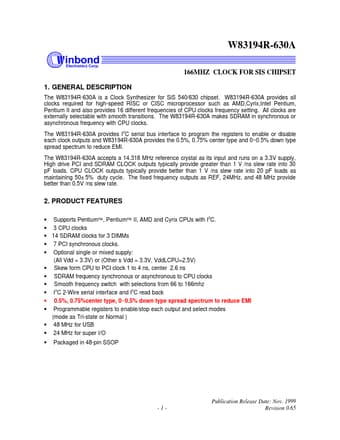

The W83194R-630A is a Clock Synthesizer for SiS 540/630 chipset.

Features

Supports Pentium™, Pentium™ II, AMD and Cyrix CPUs with I2C.
3 CPU clocks.
14 SDRAM clocks for 3 DIMMs.
7 PCI synchronous clocks.
Optional single or mixed supply: (All Vdd = 3.3V) or (Other s Vdd = 3.3V, VddLCPU=2.5V).
Skew form CPU to PCI clock 1 to 4 ns, center 2.6 ns.
SDRAM frequency synchronous or asynchronous to CPU clocks.
Smooth frequency switch with selections from 66 to 166mhz.
I2C 2-Wire serial interfac.
