W91510DN

The W91510DN is TONE/PULSE DIALER designed by Winbond.

Product Overview

Winbond

📥 Download Datasheet

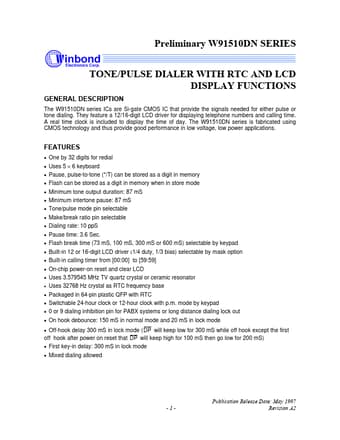

W91510DN TONE/PULSE DIALER by Winbond - Datasheet Preview — Datasheet preview – W91510DN

Datasheet Details

Part number	W91510DN
Manufacturer	Winbond
File Size	414.31 KB
Description	TONE/PULSE DIALER
Datasheet	W91510DN-Winbond.pdf
Additional preview pages of the W91510DN datasheet.

Product details

Description

The W91510DN series ICs are Si-gate CMOS IC that provide the signals needed for either pulse or tone dialing.

Features

One by 32 digits for redial.
Uses 5 × 6 keyboard.
Pause, pulse-to-tone (.
/T) can be stored as a digit in memory.
Flash can be stored as a digit in memory when in store mode.
Minimum tone output duration: 87 mS.
Minimum intertone pause: 87 mS.
Tone/pulse mode pin selectable.
Make/break ratio pin selectable.
Dialing rate: 10 ppS.
Pause time: 3.6 Sec.
Flash break time (73 mS, 100 mS, 300 mS or 6.
