W91611, W91610 - TONE/PULSE DIALER

Winbond

📥 Download Datasheet

W91611 Datasheet Preview — This datasheet PDF includes multiple part numbers: W91611, W91610. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	W91611, W91610
Manufacturer	Winbond
File Size	130.54 KB
Description	TONE/PULSE DIALER
Datasheet	W91610-Winbond.pdf
Note	This datasheet PDF includes multiple part numbers: W91611, W91610. Please refer to the document for exact specifications by model.

W91611 Product details

Description

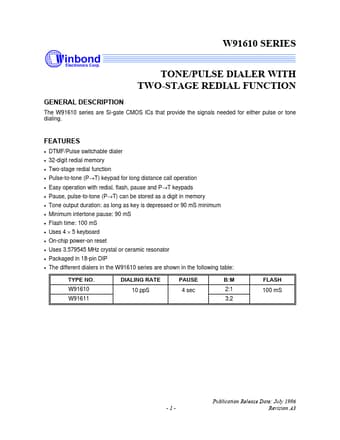

The W91610 series are Si-gate CMOS ICs that provide the signals needed for either pulse or tone dialing.

Features

DTMF/Pulse switchable dialer.
32-digit redial memory.
Two-stage redial function.
Pulse-to-tone (P→T) keypad for long distance call operation.
Easy operation with redial, flash, pause and P→T keypads.
Pause, pulse-to-tone (P→T) can be stored as a digit in memory.
Tone output duration: as long as key is depressed or 90 mS minimum.
Minimum intertone pause: 90 mS.
Flash time: 100 mS.
Uses 4 × 5 keyboard.
