D1397 Datasheet - Wing Shing Computer Components

D1397 2SD1397

2SD1397 COLOR TV HORIZONTAL OUTPUT APPLICATIONS(Damper Diode BUILT IN) www.DataSheet4U.com NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR ! ! High Collector-Base Voltage(VCBO=1500V) High Speed Switching SC-65 ABSOLUTE MAXIMUM RATINGS (TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base voltage Collector Current (DC) Collector Dissipation (Tc=25 C) Junction Temperature Storage Temperature o Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 1500 1500 6 3.5 50 150 .

D1397 Datasheet (53.79 KB)

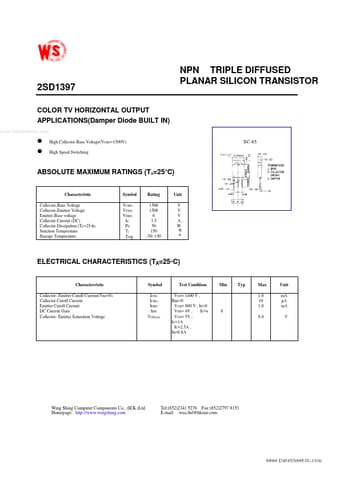

D1397 Datasheet Preview — Preview of D1397 PDF

Datasheet Details

Part number:

D1397

Manufacturer:

Wing Shing Computer Components

File Size:

53.79 KB

Description:

2sd1397.
