HC-49S - CRYSTAL UNIT

Wing Shing Computer Components

Datasheet Details

Part number	HC-49S
Manufacturer	Wing Shing Computer Components
File Size	52.98 KB
Description	CRYSTAL UNIT
Datasheet	HC-49S Datasheet
Additional preview pages of the HC-49S datasheet.

📁 Similar Datasheet

HC-49SL - Quartz Crystal (YIC)
HC-49SLMD - Quartz Crystal Unit (YIC)
HC-49SLMT - Quartz Crystal (YIC)
HC-49SMD - Quartz Crystal Unit (YIC)
HC-49SMD - Crystal Unit (YXC)
HC-49SMT - Quartz Crystal (YIC)
HC-49SSL - Quartz Crystal (YIC)
HC-49SSLMT - Quartz Crystal (YIC)
HC-49 - Tape and Reel/ insulator tab/3-lead/and custom lead length options available (ETC)
HC-49N - Surface Mount Crystals (MTRONPTI)

Other Datasheets by Wing Shing Computer Components

HC-49SSMD - CRYSTAL UNIT

Full PDF Text Transcription

Click to expand full text

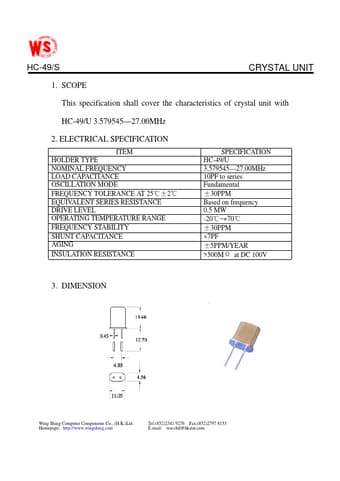

HC-49/S 1. SCOPE CRYSTAL UNIT This specification shall cover the characteristics of crystal unit with HC-49/U 3.579545—27.00MHz 2. ELECTRICAL SPECIFICATION ITEM HOLDER TYPE NOMINAL FREQUENCY LOAD CAPACITANCE OSCILLATION MODE FREQUENCY TOLERANCE AT 25℃±2℃ EQUIVALENT SERIES RESISTANCE DRIVE LEVEL OPERATING TEMPERATURE RANGE FREQUENCY STABILITY SHUNT CAPACITANCE AGING INSULATION RESISTANCE SPECIFICATION HC-49/U 3.579545—27.00MHz 10PF to series Fundamental ±30PPM Based on frequency 0.5 MW -20℃~+70℃ ±30PPM <7PF ±5PPM/YEAR >500MΩ at DC 100V 3. DIMENSION Wing Shing Computer Components Co., (H.K.)Ltd. Homepage: http://www.wingshing.com Tel:(852)2341 9276 Fax:(852)2797 8153 E-mail: wsccltd@hkstar.com HC-49/S 4.
