D1407 Datasheet - Wing Shing Electronic

D1407 2SD1407

www.DataSheet4U.com 2SD1407 PNP EPITAXIAL SILICON TRANSISTOR POWER AMPLIFIER VERTICAL DEFLECTION OUTPUT SC-67 ! Complement to 2SB1016 ABSOLUTE MAXIMUM RATINGS (TA=25℃) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base voltage Collector Current (DC) Collector Dissipation (Tc=25℃) Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating -100 -100 -5 -3 25 150 -50~150 Unit V V V A W ℃ ℃ ELECTRICAL CHARACTERISTICS (TA=25℃) Characteristic C.

D1407 Datasheet (97.63 KB)

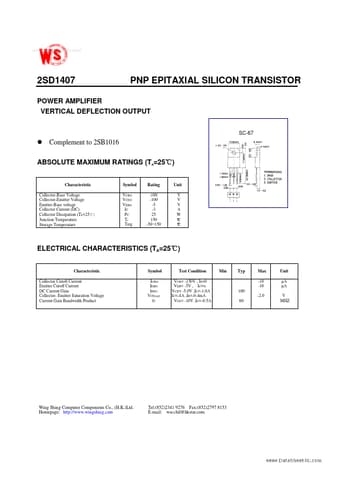

D1407 Datasheet Preview — Preview of D1407 PDF

Datasheet Details

Part number:

D1407

Manufacturer:

Wing Shing Electronic

File Size:

97.63 KB

Description:

2sd1407.
