WSC50N03 - N-Ch MOSFET

Winsok

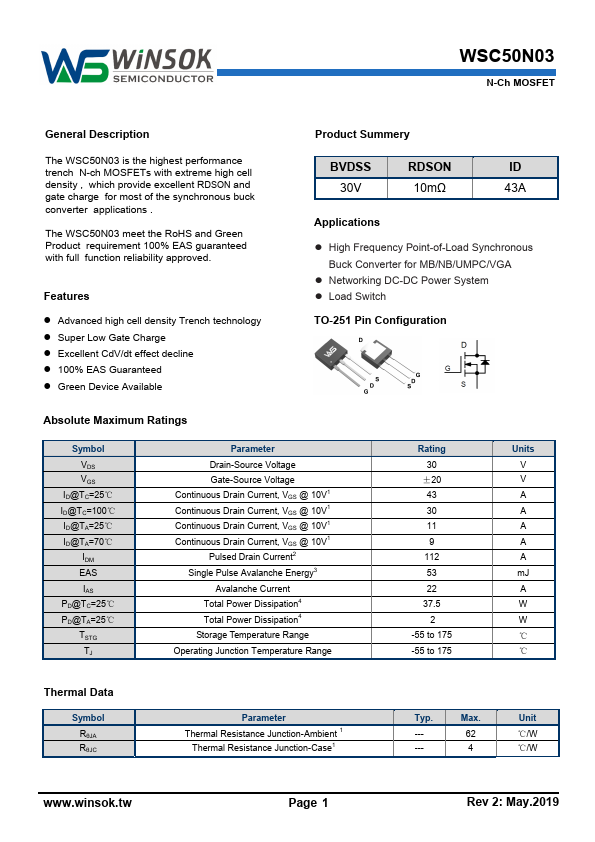

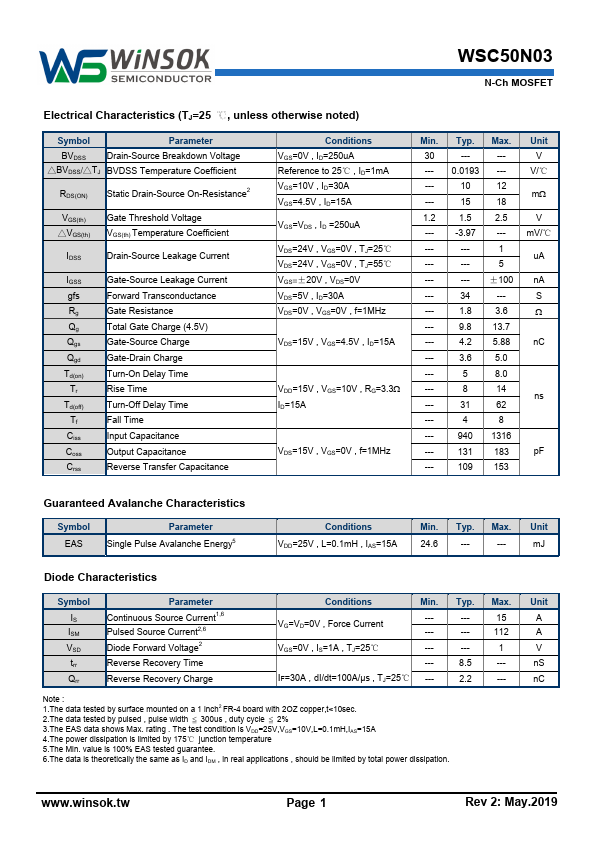

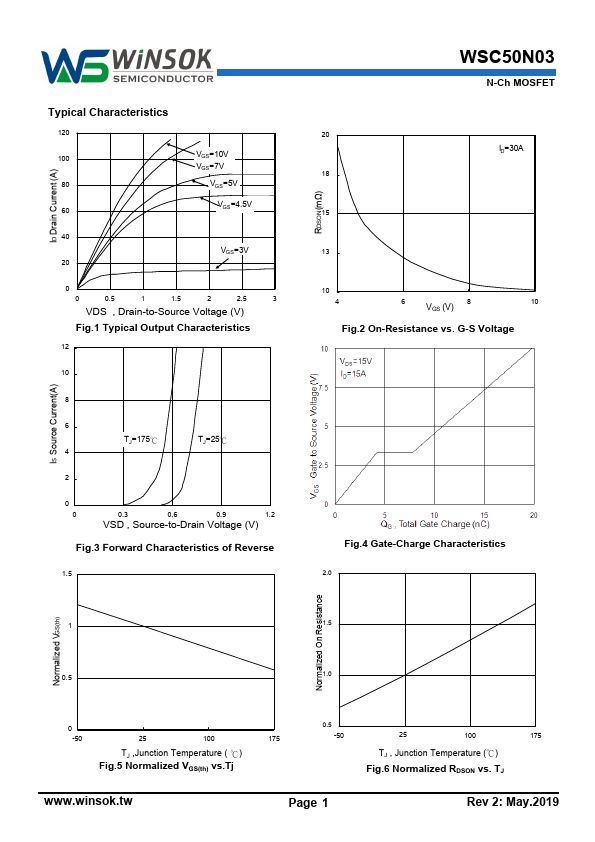

WSC50N03 Datasheet Preview — Preview of WSC50N03 PDF

Datasheet Details

Part number	WSC50N03
Manufacturer	Winsok
File Size	1.21 MB
Description	N-Ch MOSFET
Datasheet	WSC50N03-Winsok.pdf

WSC50N03 Product details

Description

The WSC50N03 is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS RDSON ID 30V 10mΩ 43A.
