WSD2010DN25 Datasheet - Winsok

WSD2010DN25 Dual N-Channel MOSFET

The WSD2010DN25 is the highest performance trench N-Channel MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WSD2010DN25 meet the RoHS and Green Product requirement with full function reliabi.

WSD2010DN25 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available WSD2010DN25 Dual N-Channel MOSFET Product Summery BVDSS 20V RDSON 6.0mΩ ID 11A Applications z Power management in portable and battery operated products z DC-DC Pow

WSD2010DN25-Winsok.pdf

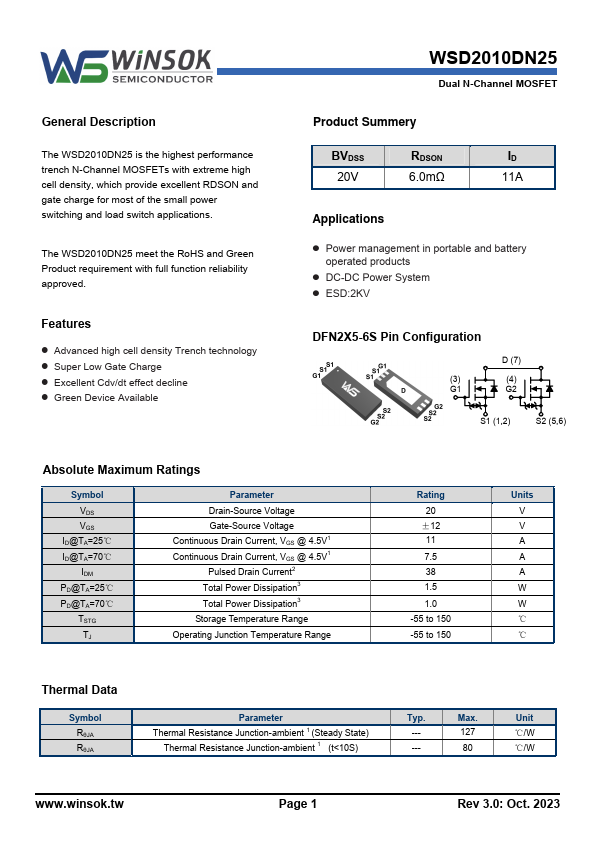

Preview of WSD2010DN25 PDF

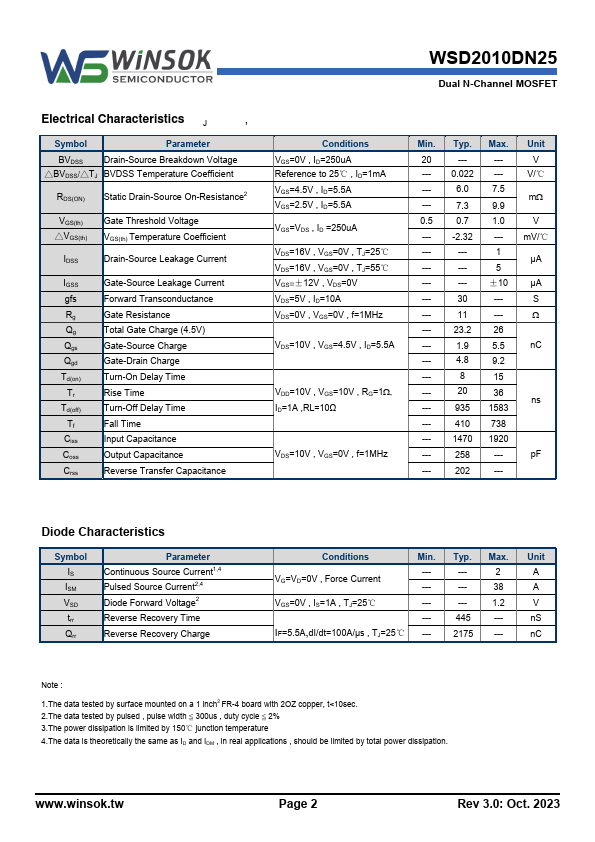

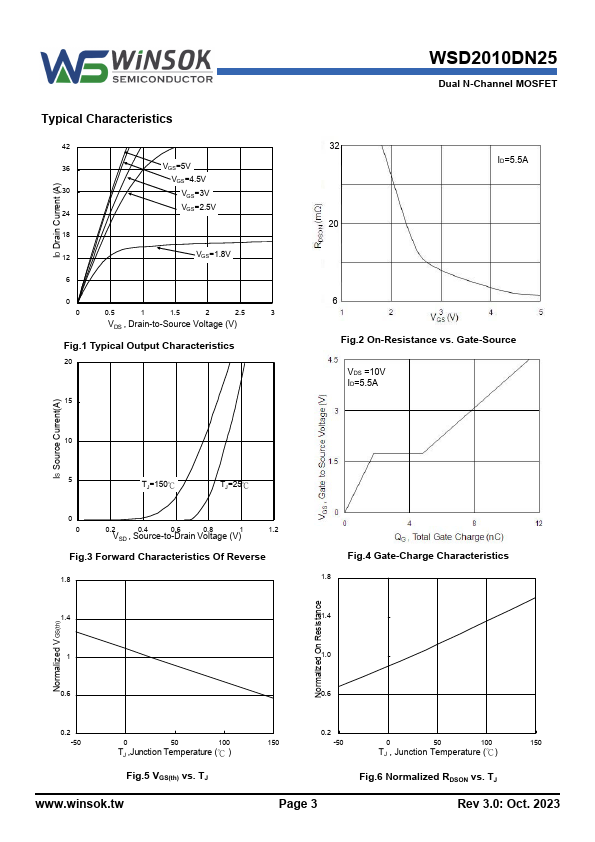

WSD2010DN25 Datasheet Preview Page 2 WSD2010DN25 Datasheet Preview Page 3

Datasheet Details

Part number:

WSD2010DN25

Manufacturer:

Winsok

File Size:

2.98 MB

Description:

Dual n-channel mosfet.
