WSD2012DN25 - Dual N-Channel MOSFET

Winsok

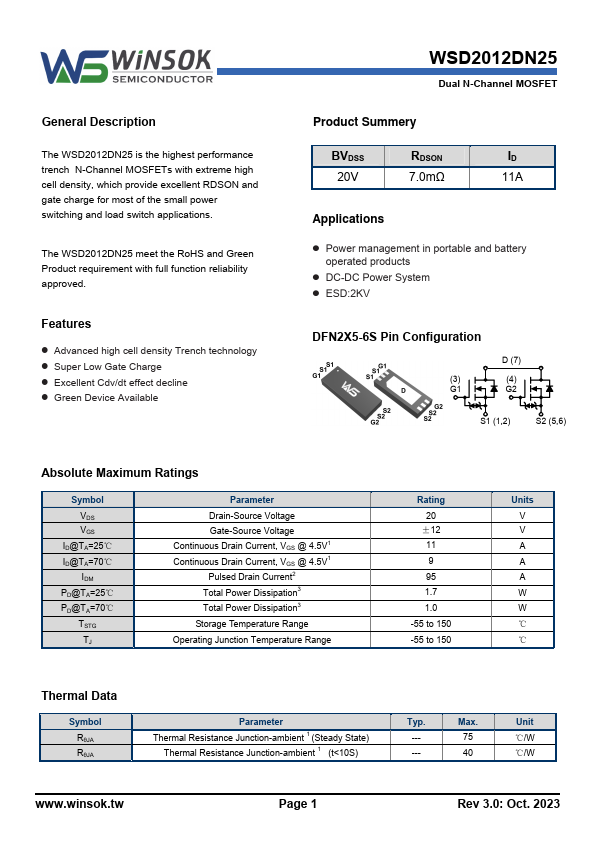

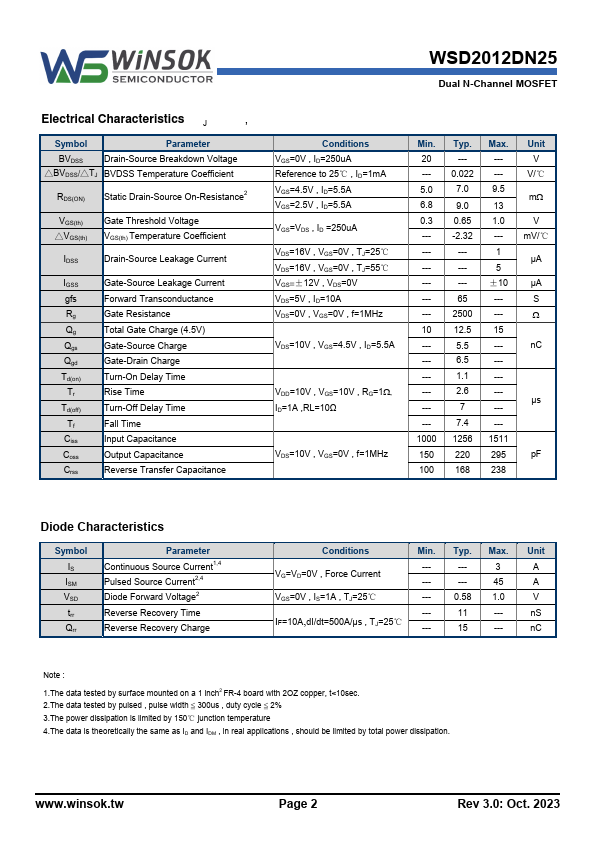

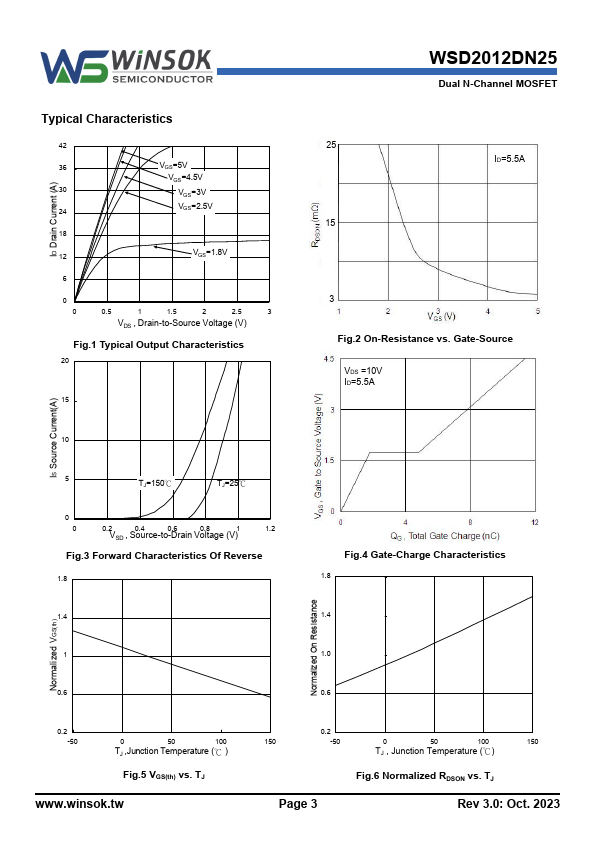

WSD2012DN25 Datasheet Preview — Preview of WSD2012DN25 PDF

Datasheet Details

Part number	WSD2012DN25
Manufacturer	Winsok
File Size	2.93 MB
Description	Dual N-Channel MOSFET
Datasheet	WSD2012DN25-Winsok.pdf

WSD2012DN25 Product details

Description

The WSD2012DN25 is the highest performance trench N-Channel MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available WSD2012DN25 Dual N-Channel MOSFET Product Summery BVDSS 20V RDSON 7.0mΩ ID 11A.
