WSD2068DN23 - Dual N-Channel MOSFET

Winsok

WSD2068DN23 Datasheet Preview — Preview of WSD2068DN23 PDF

Datasheet Details

Part number	WSD2068DN23
Manufacturer	Winsok
File Size	1.96 MB
Description	Dual N-Channel MOSFET
Datasheet	WSD2068DN23-Winsok.pdf

WSD2068DN23 Product details

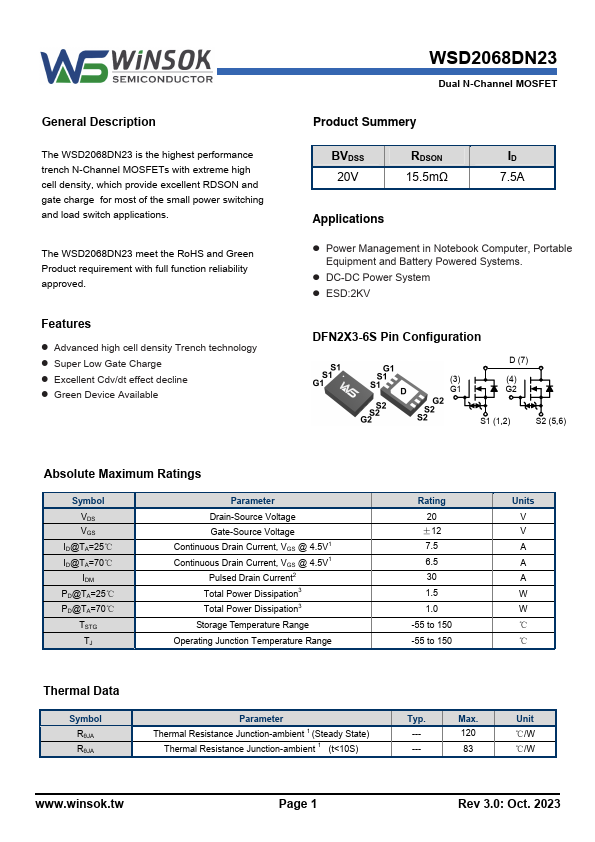

Description

The WSD2068DN23 is the highest performance trench N-Channel MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available WSD2068DN23 Dual N-Channel MOSFET Product Summery BVDSS 20V RDSON 15.5mΩ ID 7.5A.
