WSD20L70DN33
Description
The WSD20L70DN33 is the highest performance trench P-Channel MOSFETs with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.
The WSD20L70DN33 meet the Ro HS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
Features
- Advanced high cell density Trench technology
- Super Low Gate Charge
- Excellent Cd V/dt effect decline
- 100% EAS Guaranteed
- Green Device Available
P-Channel MOSFET
Product Summery
BVDSS -20V
RDS(ON) 6.7mΩ
ID -70A
Applications
- High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA
- Networking DC-DC Power System
- Load Switch

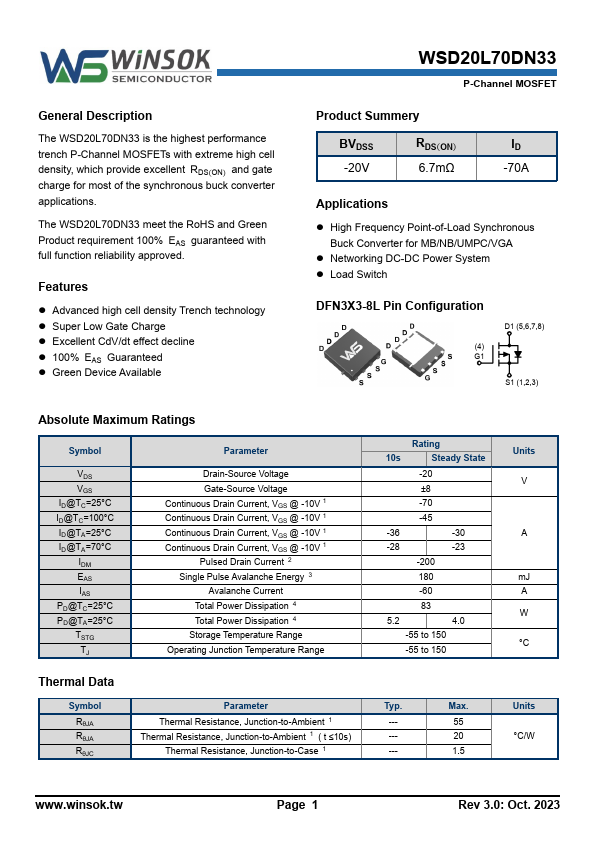

DFN3X3-8L Pin Configuration
(4) G1
D1 (5,6,7,8)
S1 (1,2,3)
Absolute Maximum Ratings
Symbol
VDS VGS ID@TC=25°C ID@TC=100°C ID@TA=25°C ID@TA=70°C IDM EAS IAS PD@TC=25°C PD@TA=25°C TSTG TJ
Parameter
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @...
